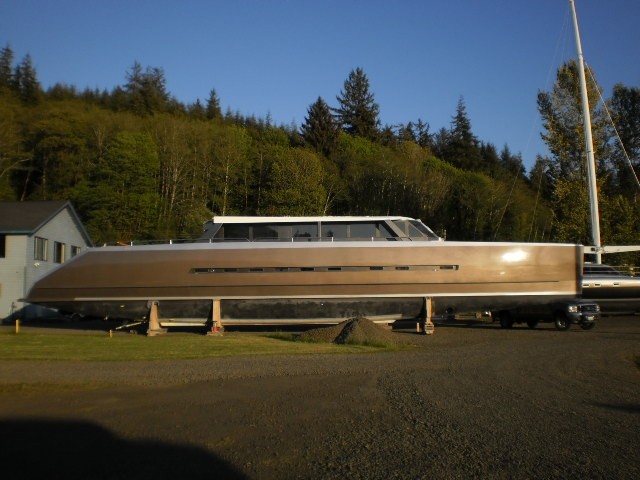

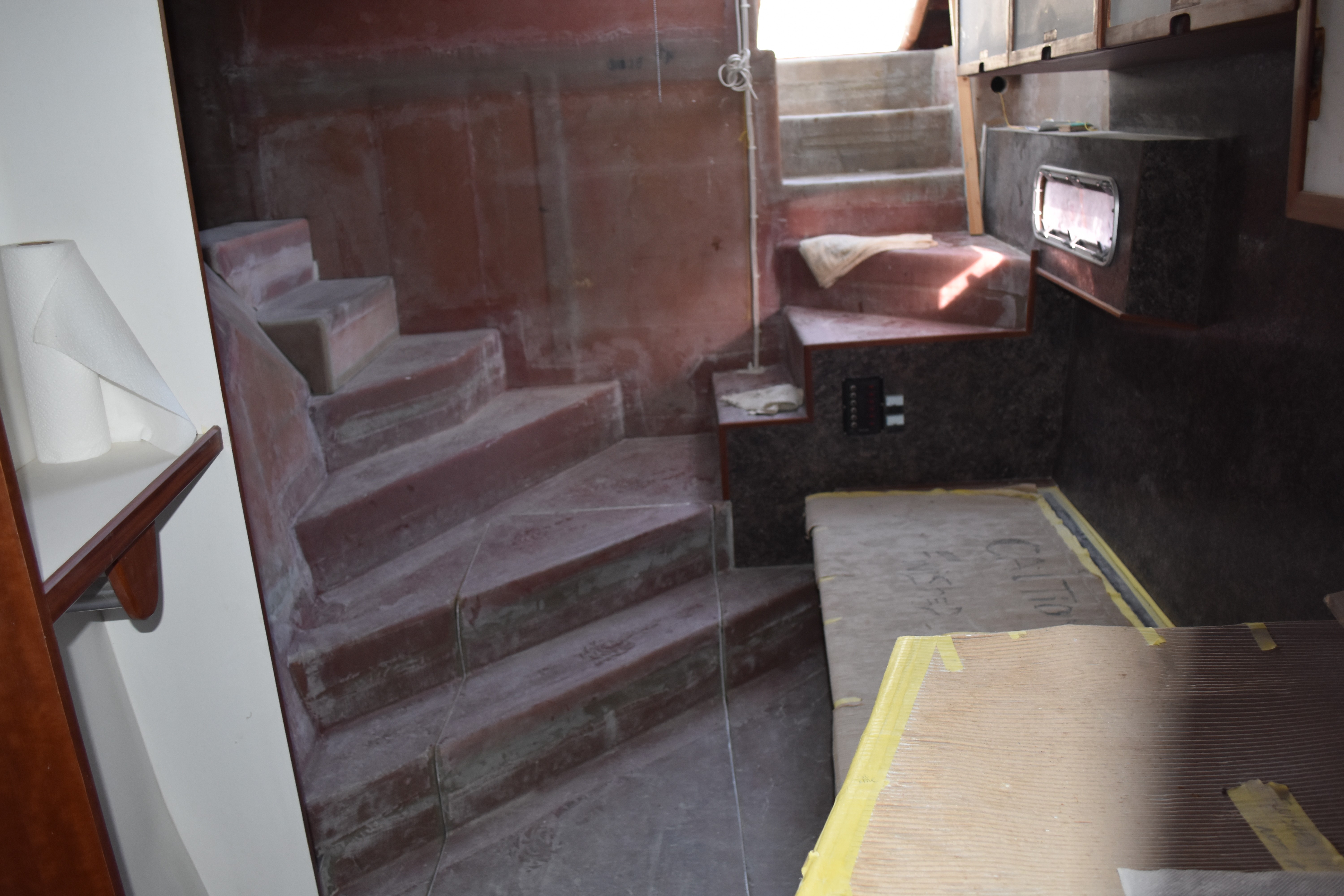

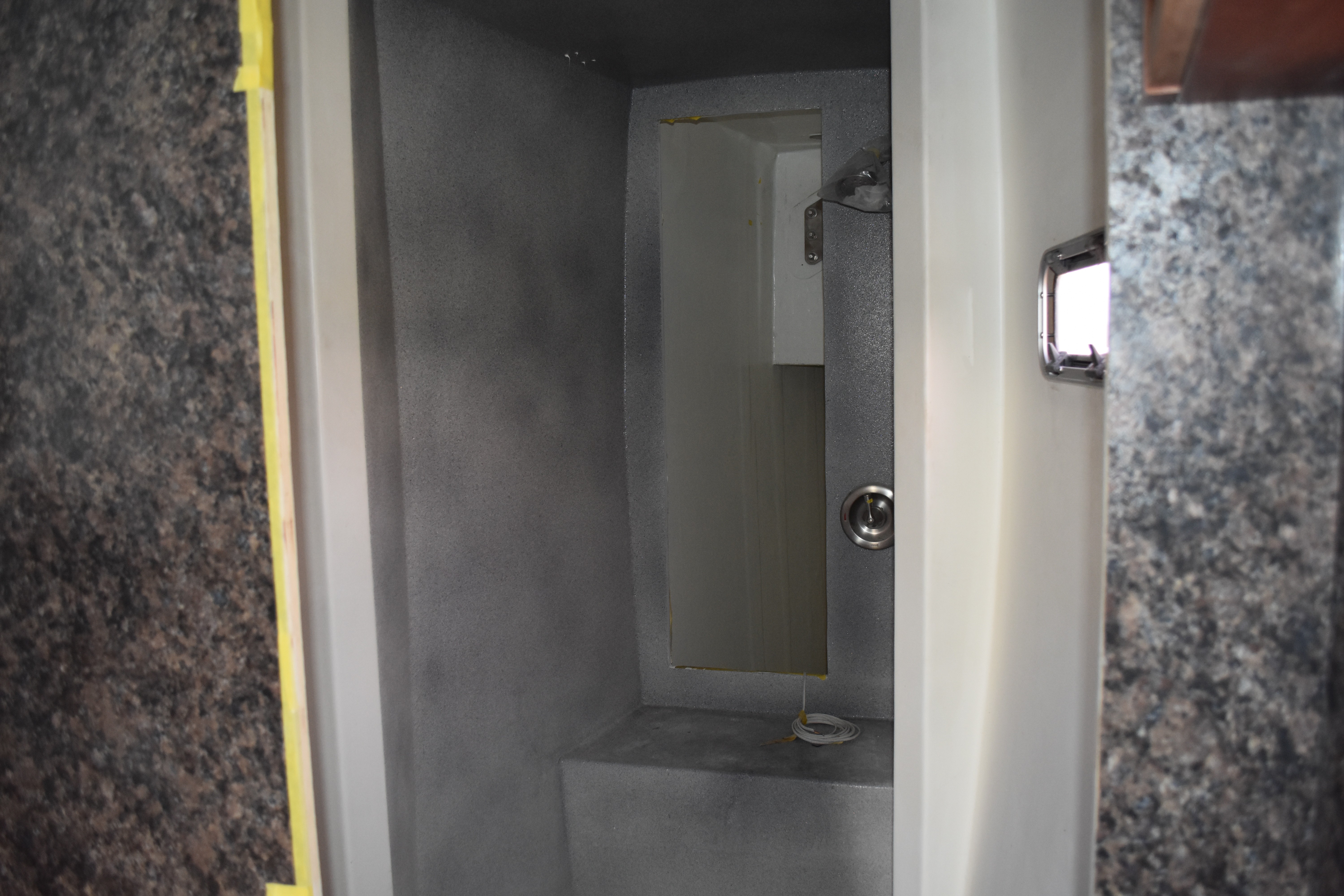

We are continuing the build, and she is in the final fairing for painting. Forebeam has been installed and the drop-down beaching ladder which will allow the front bow net to be ordered. The aft deck shower and bathroom being completed while the aft deck bar or lounging area has not been started yet, that whole layout will be up to the new owner. Forward crew quarters are about finished as seen in photos. Engines are installed (Twin 315 HP Yanmar diesel), watermaker is here, 1800 GPD, more than a gallon per minute when running. Heat and A/C will be water chiller type systems as well as conventional heat pump type. The radar arch will also handle an awning for the upper aft deck lounging. The draft is about 5' with keel, rudders (Carbon fiber posts) and props (full feathering and adjustable pitch) also hang down.
The planned colors are metallic 2 stage PPG paint, dark grey around windows, bronze hulls and light Gold Champagne topsides, all with clear coat.
DIMENSIONS & SPECIFICATIONS
| Manuf. Length: |
86' ( 26.21 m) |
| Maximum Draft: |
5' ( 1.52 m) |
| Beam: |
42' ( 12.80 m) |
| Mast Height Clearance: |
86' ( 26.21 m) |
| No of Cabins: |
6 |
| No of Heads: |
7 |
| Fuel Capacity: |
2x1000 g |
| Water Capacity: |
4x55 g |
| Holding Tank: |
2x500 Gallons |
| Cruise Speed: |
15 Mph |
| Max speed: |
18-21 Mph |
| Weight Displacement: |
20 ton (40000 lb) |
HULL AND DECK CONFIGURATION
| Hull Material: |
Airex® Foam, E-Glass, Kevlar, Carbon Fiber, Vinyl ester Resin, Divinycell Foam |
| Hull Configuration: |
Catamaran |
GENERATOR DETAILS
| Does the boat have a generator?: |
Yes |
| Generator Model: |
Cummings Onan |
| Generator Horsepower: |
1x13kW + 1x11kW |
This is a great place to start if you ever wanted a custom catamaran … saving over 2 years of construction time.
This cat is 86' long and 42' wide with keels and can be beached or set on a spit at low tide to do clean up or repaint bottoms. She is a custom composite catamaran built with Airex foam core, tri- and bi-axial fabric and Vinylester resin, carbon fiber and epoxy resin, Kevlar was needed for beaching.
ENGINE DETAILS
| Engine Manufacturer: |
Yanmar |
| Engine Model: |
6LPAM-STP2 |
| Engine Horsepower: |
315 |
| Engine Type: |
InBoard |
| Engine Configuration: |
Twin |
| Engine Fuel Type: |
Diesel |
